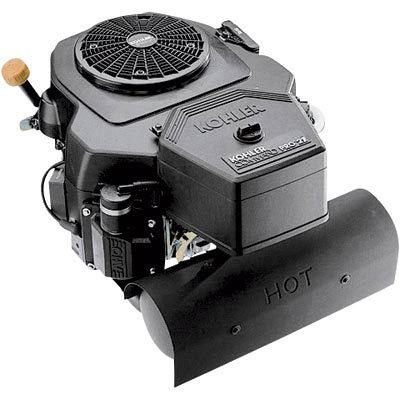

Kohler 23.5hp Command Pro V-Twin Vertical Shaft CV730-0001 BASIC [CV730-0001]

$1,959.56

Kohler 23.5hp Command Pro V-Twin Vertical Shaft CV730-0001 BASIC [CV730-0001]

$1,959.56
Quantity:
Share

Product Description

Overview


Shaft
Cylinders
Cooling
Fuel Type
Status
  Vertical V-Twin Air Gasoline Current



Air Intake/Filtration 10-24-55

  Blower Housing & Baffles 6-24-156 CV18-750

  Crankcase Group 2-24-365 CV18-750

  Crankshaft Group 1-24-17

  Decals 12-24-450

  Engine Controls 9-24-261 CV18-750

  Exhaust 11-24-58

  Fuel System 8-24-358

  Head/Valve/Breather 4-24-25

  Ignition/Electrical 5-24-798

  Oil Pan/Lubrication 3-24-448

  Starting Group 7-24-5 CV18-750


Features + Benefits

  • 12V solenoid shift starter
  • Aluminum block
  • Spin-on oil filter
  • Hydraulic valve lifters
  • Smart-Choke™ carburetor
  • Oil Sentry
  • Includes muffler and exhaust manifold
  • Key Specs

  • Engine Displacement (cc)
    725
    Start Type
    Electric
    Engine Type
    Command Pro V-Twin CV730 - OHV
    Rated Power (HP)
    25
    Torque (ft./lbs.)
    41
    Displacement (cu. in.)
    44
    Shaft Output
    Vertical
    Shaft Diameter (in.)
    1 1/8
    Shaft Length (in.)
    3 5/32
    Shaft End Tapped (Diameter (in.)/Threads per inch)
    7/16 - 20
    Shaft Rotation (From PTO Shaft Side)
    Counterclockwise
    Cylinders (qty.)
    2
    Cylinder Bore
    Cast iron
    Bore x Stroke (in.)
    3.30 x 2.60
    Compression Ratio
    9.0:1
    Cooling System
    Air cooled
    Air Cleaner Type
    Dual element air filter with foam pre-cleaner
    Fuel Tank
    Not included
    Fuel Type
    Gasoline
    Fuel Pump
    Pulse
    Fuel Filter
    In line
    Oil Capacity (qt.)
    2
    Lubrication System
    Full pressure
    Ignition System
    Electronic
    Carburetor
    Fuel injection
    Max. RPM
    3,600
    Charging System Amps
    20
    Muffler Included
    Yes
    Auto Compression Release
    Yes
    Bolt Circle (in.)
    10
    Dimensions L x W x H (in.)
    21 3/16 x 17 11/16 x 14 5/16
    EPA/CARB Approval (California Air Resource Board)
    Yes
    Manufacturer Warranty
    24 months parts / 24 months labor
    Ship Weight
    108.0 lbs
    Item#
    70250

Durable, Long Life Design.

Hydraulic valve lifters are oil pressurized, ensuring that push rods stay in constant contact with the rocker arms. Requiring no adjustment, the valve train is virtually maintenance-free. In addition, full-pressure lubrication delivers continuous lube to critical engine components, even at 25-degree angle of operation and optional oil cooler regulates the oil temperature extending oil-change intervals. Large capacity, in-line fuel filter provides extra protection against dirt particles that can clog fuel lines.

High Power Performance.

Overhead valve technology provides greater volumetric efficiency and a higher compression ratio. This produces more power, improved fuel economy and cooling and reduces oil consumption. In addition, there is virtually no carbon buildup, reducing overall maintenance costs. The variable speed, mechanical governor promises smooth performance, regardless of application or fluctuating demands for power.

Reliable Starting.

KOHLER Command PRO® electronic ignition system generates a stronger spark at low cranking speed and Automatic Compression Release (ACR) allows compression to escape during cranking to reduce pull force.

User-Friendly Maintenance.

  • Extended maintenance intervals
  • Yellow oil fill cap/dipstick handle
  • Dual oil drains
  • Easy-access oil fill/dipstick
  • Two-year limited warranty

High Power Performance.

  • Accelerator pump carburetor
  • High-performance spark plugs
  • 20 amp charging, regulated
  • Larger in-line fuel filter
  • Overhead valve (OHV) design

Reliability and Long Life Design.

  • Hardened crankshaft journals
  • PTO sleeve bearing (side load)
  • High-efficiency fan and screen
  • Commercial air cleaner with larger dual-element air filter and foam pre-cleaner
  • Oil cooler
  • Cast iron cylinder liners
  • Hydraulic valve lifters
  • Full-pressure lubrication
  • Spin-on, full-flow oil filter

Quiet, Smooth Operation.

  • Integrated muffler & heat shield
  • Engineered material blower housing
  • Pulse fuel pump
  • CARB & EPA emission-certified

Easy Dependable Starts.

  • Top-mount controls
  • Smart-Choke™ carburetor
  • Electronic ignition system
  • Solenoid shift starter
